Dwyer德威爾 DPGWB-00/04/05/06/07/08/09/10/11 壓力表

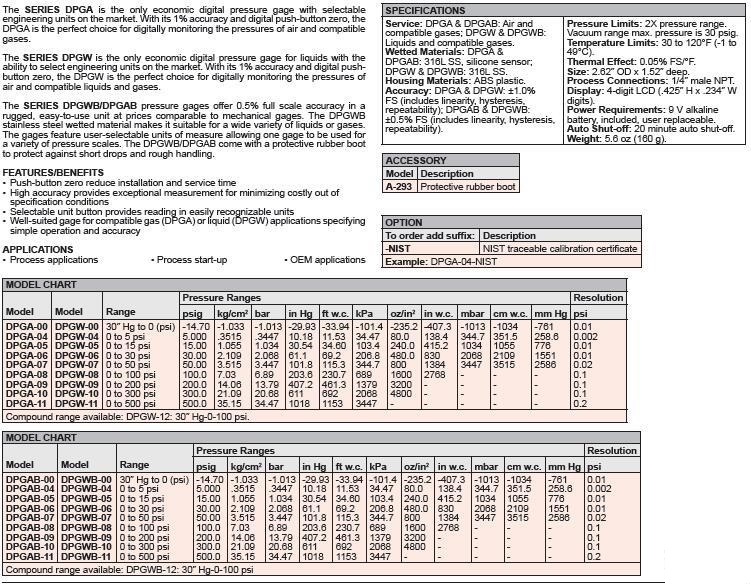

The SERIES DPGWB/DPGAB pressure gages offer 0.5% full scale accuracy in a rugged, easy-to-use unit at prices comparable to mechanical gages. The DPGWB stainless steel wetted material makes it suitable for a wide variety of liquids or gases. The gages feature user-selectable units of measure allowing one gage to be used for a variety of pressure scales. The DPGWB/DPGAB come with a protective rubber boot to protect against short drops and rough handling.1 壓力表

Dwyer德威爾 DPGWB-00/04/05/06/07/08/09/10/11 壓力表

Service:

DPGAB: Air and compatible gases;

DPGWB: Liquids and compatible gases.

Wetted Materials:

DPGAB: 316L SS, silicone sensor;

DPGWB: Type 316L SS.

Housing Materials: ABS plastic.

Accuracy: ±0.5% F.S. (includes linearity, hysteresis, repeatability).

Pressure Limits: 2X pressure range. Vacuum range max. pressure is 30 psig.

Temperature Limits: 30 to 120°F (-1 to 49°C).

Thermal Effect: 0.05% FS/°F.

Size: 2.62" O.D. x 1.52" deep.

Process Connections: 1/4" male NPT.

Display: 4-digit LCD (.425" H x .234" W digits).

Power Requirements: 9 V alkaline battery, included, user replaceable.

Auto Shut-off: 20 minute auto shut-off.

Weight: 5.6 oz (160 g).
